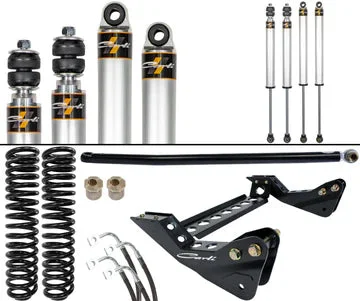

Carli Backcountry Leveling Suspension – Base – 2.5in Lift – 13-18 – Ram 3500 – Diesel

Description

Carli Suspension

Carli Backcountry Leveling Suspension Base 2.5in Lift 2013–2018 Ram 3500 Diesel

The Carli Backcountry 2.0 Leveling Suspension System delivers a strong balance of on-road ride quality, towing control, and mild off-road capability at a reasonable price. Built for Ram 3500 diesel trucks, this system provides a 2.5-inch front lift while maintaining factory rear spring load capacity and improving overall predictability.

This system uses Carli SPEC 2.0-inch remote reservoir shocks custom tuned for highway driving, around-town use, towing, hauling, and slow to mid-speed off-road use. The shocks feature 6063 aluminum construction, anodized corrosion-resistant bodies, 5/8-inch hardened steel chrome-plated shafts, 6061 billet rod ends, 1-piece bushings, full serviceability, rebuildability, and premium 5WT oil for consistent damping across a wide temperature range.

Key Features:

• 2.5-inch front lift

• Carli SPEC 2.0-inch remote reservoir shocks

• Front and rear shock package

• Rear shocks custom tuned for factory rear springs

• Maintains factory rear spring load capacity

• Improves ride quality, handling, and predictability

• Designed for on-road comfort and mild off-road performance

• 6063 aluminum shock bodies with anodized corrosion-resistant finish

• 5/8-inch hardened steel chrome-plated shock shafts

• Fully serviceable and rebuildable shocks

• 6061 billet rod ends with 1-piece bushings

• Premium 5WT shock oil for consistent damping

• 1-year warranty serviced by Carli

• 2.5-inch lift height does not require the geometry correction used in Carli 3-inch systems

Notes:

• This system is not upgradeable to any other Carli Suspension system.

• Not compatible with trucks equipped with factory auto-leveling air assist.

• Slight eccentric bolt compensation is recommended to correct caster after installation.

• No radius arm drops are included, so slight front coil bow may occur.

• Carli torsion sway bar can further improve ride quality.

• Carli low-mount steering stabilizer is recommended for tires larger than factory size.

Wheel and Tire Notes:

• Recommended tire size is 35 inches.

• Recommended wheel width is no more than 9 inches.

• Recommended backspacing is 5.5 to 6 inches.

• An 18-inch wheel is recommended for optimal ride quality.

• Recommended unloaded tire pressure is 45 PSI front and 40 PSI rear.

Vehicle Fitment:

• 2013–2023 Ram 3500

  • Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, SLT, ST, Tradesman

SKU: CS-DLVL-BC-CS-13-D
